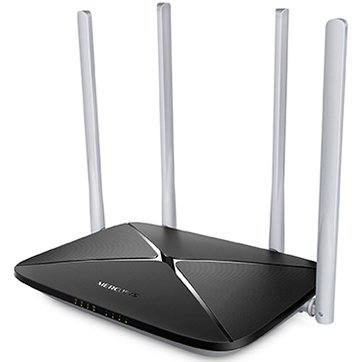

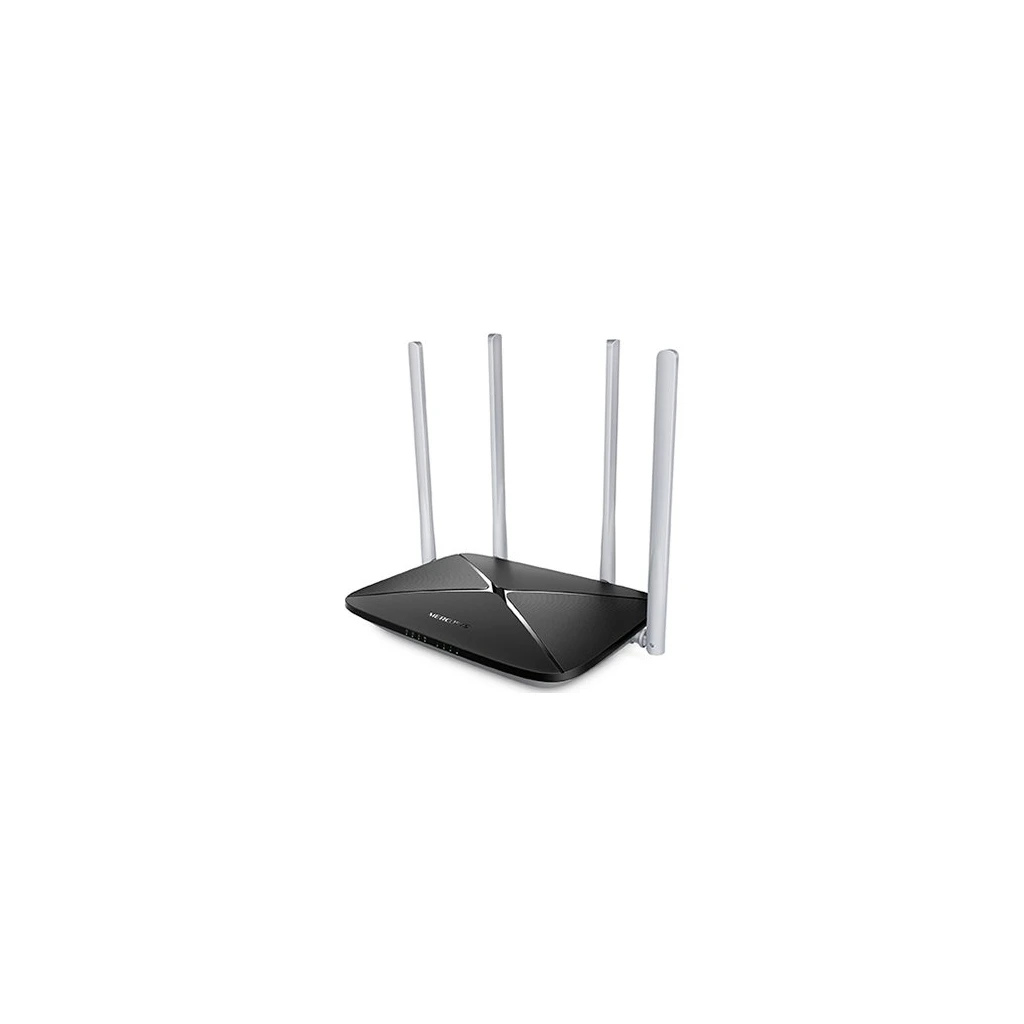

Mercusys AC1200 Dual Band Wireless Router 802.11ac 4×10/100Mbps LAN ports 1×10/100Mbps WAN port 4 x

Network Device Type Router/Range Extender/Access Point

Data Link Protocol Supports (New) Wi-Fi + LAN

External Connection Type 1 x WAN (up to 100 Mbps)

Wireless Networking IEEE 802.11ac (5 GHz, up to 867 Mbps)
IEEE 802.11n (5 GHz, up to 300 Mbps)
IEEE 802.11g (2.4 GHz, up to 54 Mbps)
IEEE 802.11b (2.4 GHz, up to 11 Mbps)

Encryption Algorithm WPA-PSK
WPA2-PSK

LAN 4 x Fast Ethernet/Ethernet (10Base-T/100Base-TX, up to 100 Mbps)

Line Modulation Type CCK
OFDM

Supported Networking Compliant Standards IEEE 802.11b
IEEE 802.11g
IEEE 802.3
IEEE 802.3u
IEEE 802.11n
IEEE 802.11ac

Router Features Web Interface
Wireless Distribution System (WDS)
Live Parental Controls
Dual Band
Access Point
MU-MIMO
DHCP Server

Antenna External

Wireless LAN Antenna Quantity 4

Device Location External

Status LED Indicators Activity Status

Certifications CE, ROHS

Included Accessories Power Adapter
Quick Start guide

Cable Included LAN Cable

WAN 1 (RJ-45)

LAN 4 (RJ-45)

Power Device Location External

Width (mm) 222 mm

Height (mm) 32 mm

Depth (mm) 140 mm

External Color White/Black

Package Type Box

Warranty Products returnable Yes

Warranty Term (month) 24 month(s)

Warranty validation Criteria Serial Number

Pack Weight Brutto (kg) 0.3 kg

Pack Weight Netto (kg) 0.3 kg

Pieces in pack 1
